Applicable Industries And Scope
|
Applicable VOCs |
benzene, toluene, xylene, ethanol, isopropanol, butanol, MEK, MlBK, acetone, cyclohexanone. NMP, esters, propionates, J-esters, and various chlorinated solvent systems. |
|
Application industries |
painting, printing, pharmaceuticals, semiconductor manufacturing, etc. |
Note: Polymer and viscous substances in the gas need to be treated in the pretreatment stage, otherwise it will cause blockage of the adsorbent microporous structure, resulting in the failure of the adsorbent.

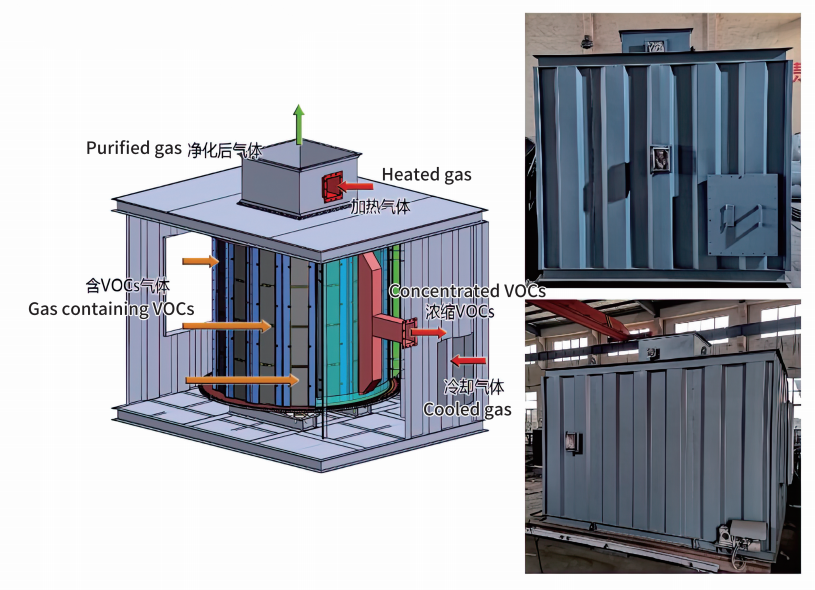

Product Structure
Equipment Features And Advantages
1. High performance and efficiency: Using hydrophobic molecular sieves with good adsorption performance as an adsorbent can provide sufficient performance for a wide range of VOCs types and different operation conditions.
2. Processing of high boiling point solvents: Using hydrophobic zeolite molecular sieves, which are non-flammable and highly heat-resistant, can regenerate at high temperatures. Therefore, it can also process high boiling point VOCs that cannot be processed due to the temperature limitation when using activated carbon.
3. Inertness: Even VOCs with high thermal polymerization properties, such as styrene and cyclohexanone, can be treated efficiently using hydrophobic molecular sieves.
4. Cleaning and activation: The zeolite molecular sieve turntable is entirely an inorganic complex formed by sintering at high temperature. If the honeycomb pathway is blocked, it can be washed with water, in addition, the molecular sieve turntable can be activated at high temperature through heat treatment according to actual conditions.
Product Number
| LQ | TEC |
2000 |
16 | 10 |
|
Lv Quan company products |
Variable Frequency Zeolite Turntable (Drum Type) |
Handling air capacity 2000 3000 4000 5000 |
Number of Rotor Sectors 16 20 24 28 36 |
Concentration ratio 5 8 10 |
Example: LQ-TFC-20001610
Interpretation: Lv Quan's drum-type zeolite concentration turntable processes an air volume of 20000m³/h, has 16 processing sections, and a concentration ratio of 10 times.
Partial Selection
|
Model |
Handling air capacity (Nm3/h) |
L(mm) |
W(mm) |
H(mm) |
Weight(T) |
|
LQ-TFC-20001610 |
20000 |
3200 |
2500 |
2150 |
3.6 |
|
LQ-TFC-25002010 |
25000 |
3450 |
2750 |
2150 |
4.3 |
|
LQ-TFC-30002410 |
30000 |
3750 |
3050 |
2150 |
5.1 |
|
LQ-TFC-40002410 |
40000 |
3750 |
3050 |
2550 |
5.9 |
|
LQ-TFC-50002410 |
50000 |
3750 |
3050 |
2950 |
6.6 |
|
LQ-TFC-60002410 |
60000 |
3750 |
3050 |
3350 |
7.4 |
|
LQ-TFC-100003610 |
100000 |
4550 |
3850 |
3750 |
11.8 |
