Overview The wet dust removal principle uses the process of capturing and separating dust particles in the gas phase by fully contacting gas-liquid two phases. Currently, commonly used structural forms are as follows: 1. Water storage: a certain amount of water is installed, and the high-speed dust-containing gas hits to form water droplets, water films, and bubbles to wash the dust-containing gas, such as impulse precipitators, water bath precipitators, and horizontal vortex water film precipitators. 2. Pressurized water spraying: supply pressurized water to the dust collector to wash the dust-containing gas with water droplets produced by spraying or atomization, such as venturi scrubbers, foam scrubbers, packed towers and turbulent scrubbers. 3. Forced rotary spraying: using mechanical force to force rotary spraying or rotating blades to form water droplets, water films, and bubbles. Washing the dust-containing gas, such as rotary spray scrubbers.
Get A Quote Download
PREV：No previous articleNEXT：LQ-GXF High-temperature pressure relief valve
  • Parameter
  • Contact Us

  • Structural Form

    Working Principle

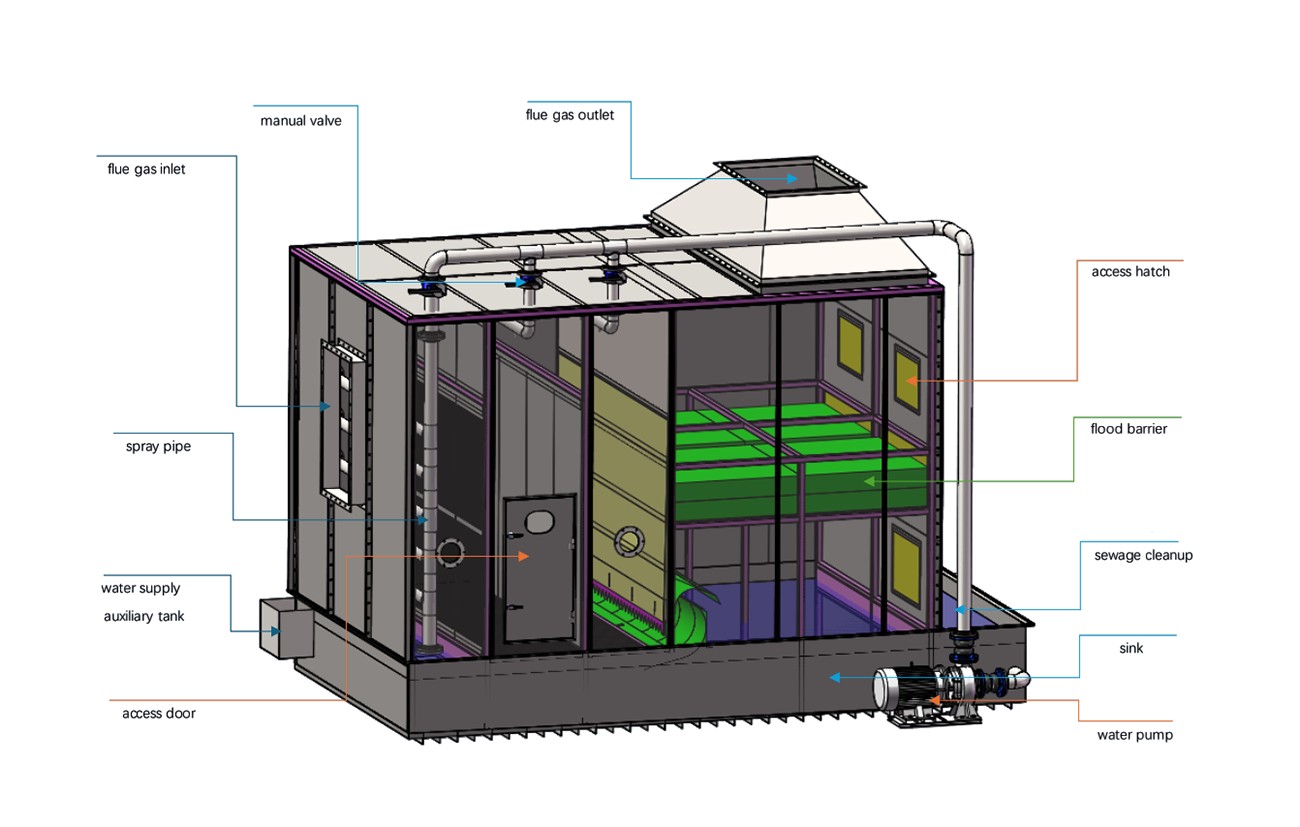

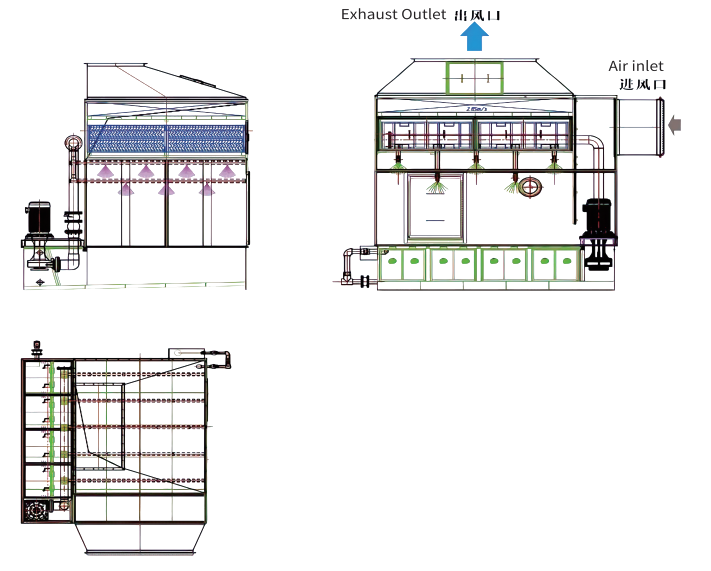

    The horizontal spray cabinet is equipped with two water curtains inside. The first is a rectangular stainless steel perforated plate and the second is a non-perforated stainless steel plate. Water enters from the water trough above the water curtain plate and forms a water film flowing from top to bottom on the stainless steel plate. The exhaust gas enters the end of the dust collector and collides with the downward flowing water film on the stainless steel plate. The dust-containing gas is intercepted and trapped by the wet water film, and the dust particles flow down the water tray at the bottom of the dust collector with the water. After colliding with the second water curtain plate, the exhaust gas hits the water in the lower part of the water curtain plate and circulates.  Some of the larger dust particles directly settle in the water tray. Then, the dust-containing gas passes through the S-shaped channel at high speed and stirs up a large number of water droplets, allowing the dust to fully contact with the water droplets and remove the dust content in the gas. This method can achieve a dust removal efficiency of over 85% for particles and dust above 5μm.

    Characteristics

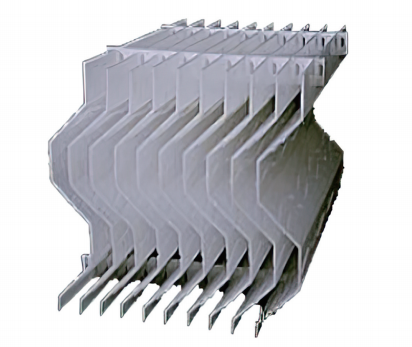

    After dust removal, the gas-water separator at the outlet removes the moisture in the gas. The flue gas passes through the bend channel of the demister, and under the action of inertia force and gravity, the liquid droplets carried in the gas flow are separated. After dust removal, the flue gas flows through the demister at a certain speed, and the flue gas changes direction quickly and continuously. Due to the centrifugal force and inertia, the mist drops in the flue gas collide with the demister blades and are collected. The mist droplets are gathered to form a water stream and fall to the bottom water collection tray under the action of gravity, achieving gas-liquid separation, ensuring that the flue gas flowing through the demister meets the defogging requirements and is discharged.

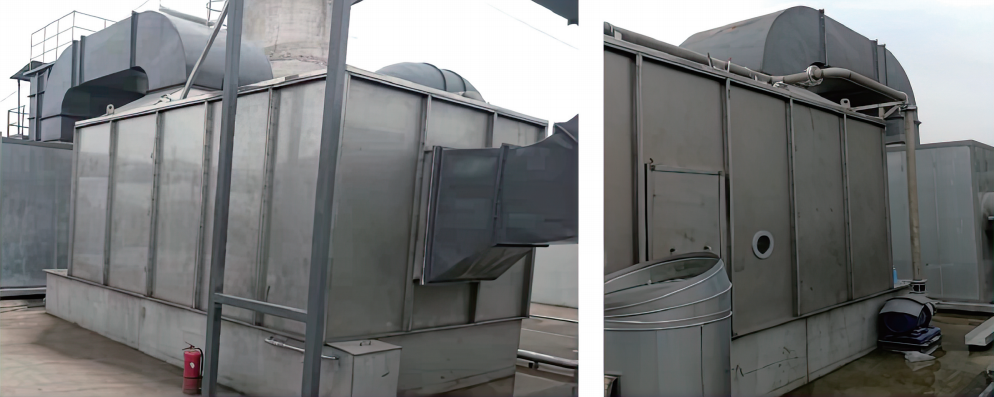

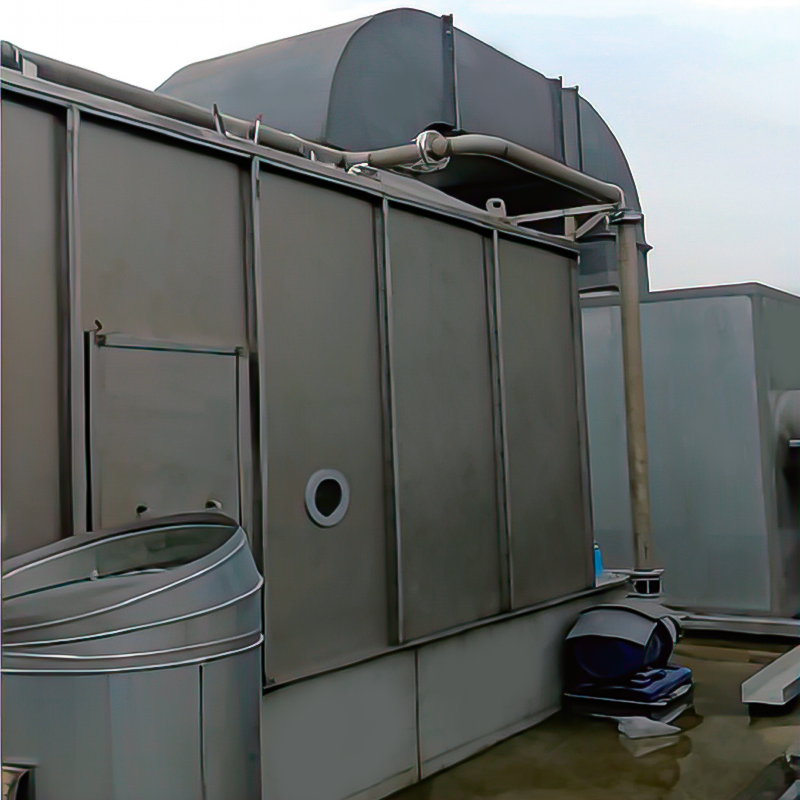

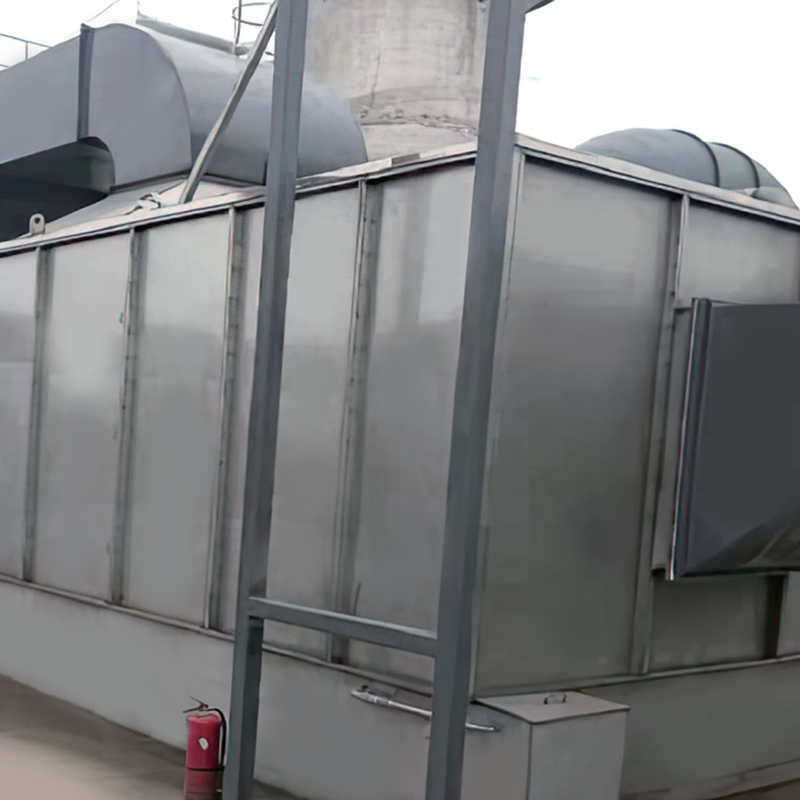

    Compared with the vertical spray dust removal tower, the horizontal spray (water curtain) dust removal cabinet has the advantage of convenient maintenance and various dust removal methods. This dust removal cabinet adopts water curtain + impulse vortex dust removal, and the cabinet body is made of stainless steel material, with a stainless steel water tray.  The side of the cabinet is equipped with a maintenance door, which is convenient for personnel to enter and maintain.

    Advantages: easy layout, large air volume for purification and dust removal, high dust removal efficiency, and convenient maintenance.
