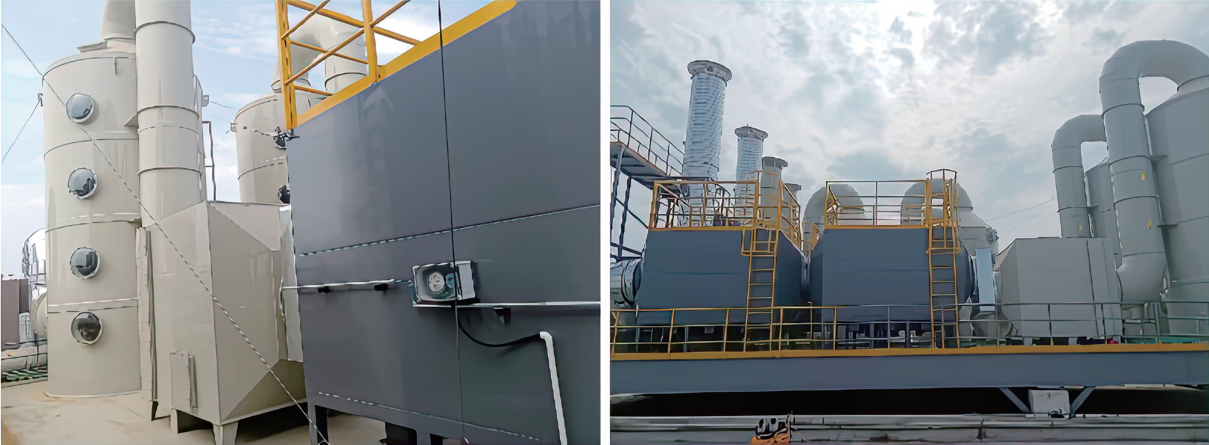

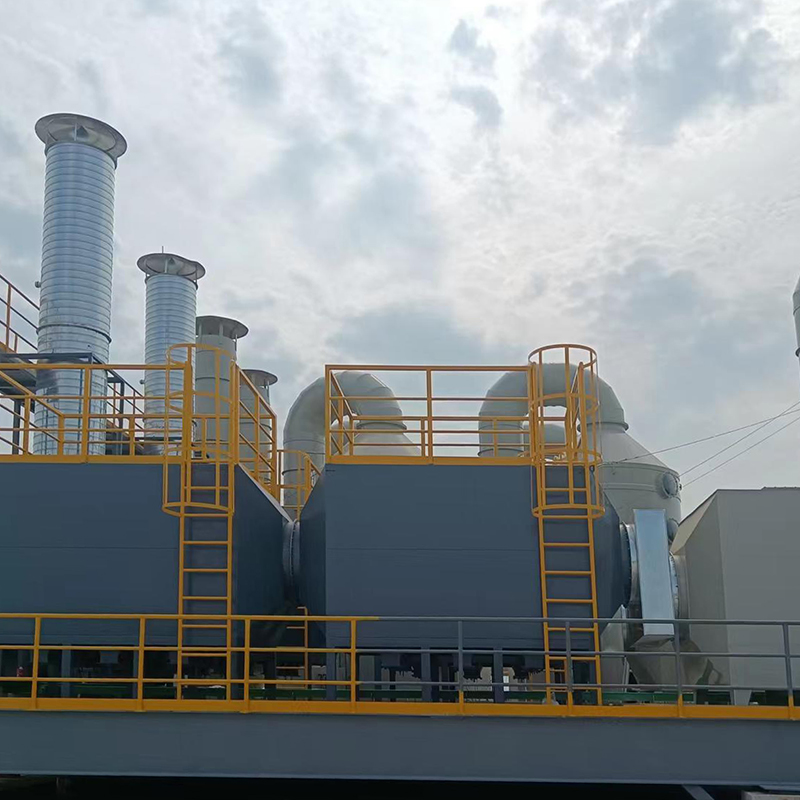

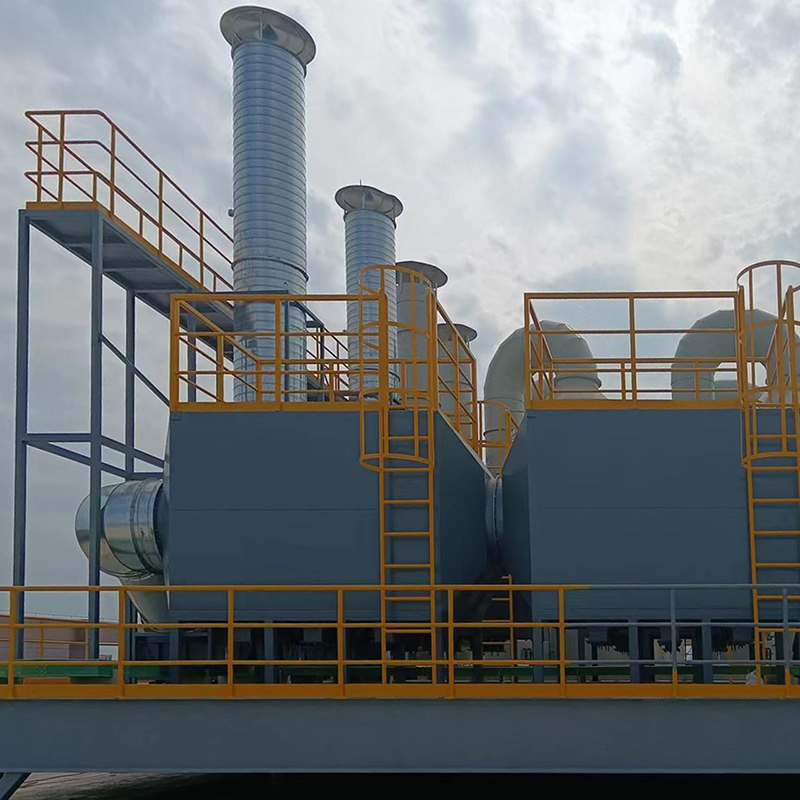

LQ-ACA Granular Activated Carbon Adsorption and Condensation Recovery System
LQ-ACA Granular Activated Carbon Adsorption and Condensation Recovery System
LQ-ACA Granular Activated Carbon Adsorption and Condensation Recovery System
LQ-ACA Granular Activated Carbon Adsorption and Condensation Recovery System
LQ-ACA Granular Activated Carbon Adsorption and Condensation Recovery System
LQ-ACA Granular Activated Carbon Adsorption and Condensation Recovery System

LQ-ACA Granular Activated Carbon Adsorption and Condensation Recovery System

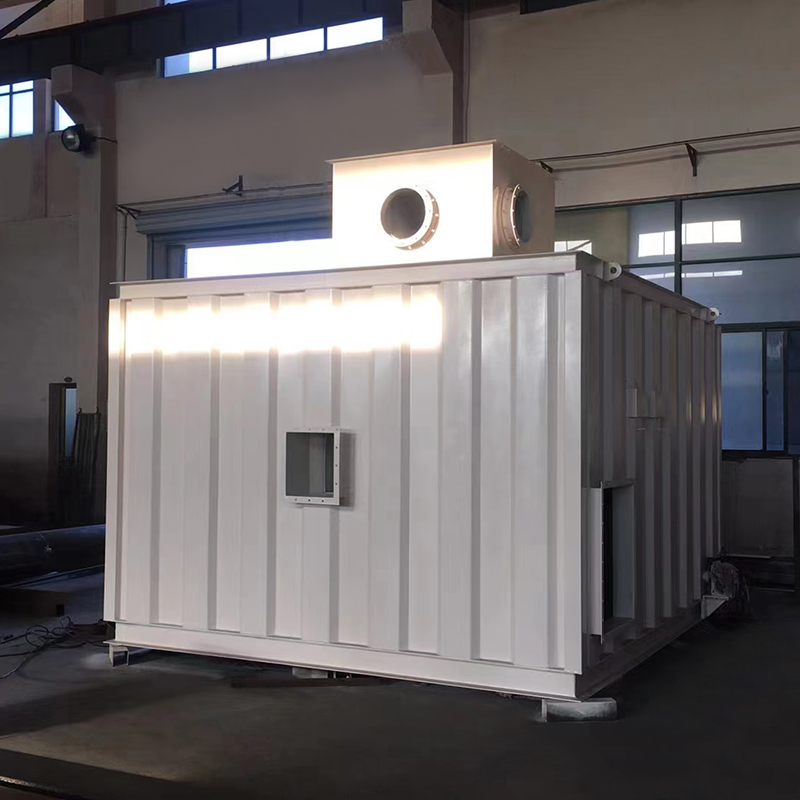

Overview The VOC-ACA series organic gas particle carbon purification and recovery equipment is used for the absorption, recovery, and reuse of organic waste gases, such as benzene, alcohol, ketone, ether, phenol, gasoline, etc.
Get A Quote Download
PREV：LQ-ADW-RTO Zeolite wheel +RTO SystemNEXT：LQ-ACF Activated Carbon Fiber Adsorption and Condensation Recovery System
  • Parameter
  • Contact Us

  • Application Range

    1. Applicable to industries such as chemical, light industry, printing, rubber, furniture, electromechanics, shipbuilding, automobiles, and petroleum.

    2. Applicable to other industries that require the recovery of volatile organic solvents.

    3. Applicable to large air volume, medium to high concentration, and low temperature organic gases.

    Working Principle

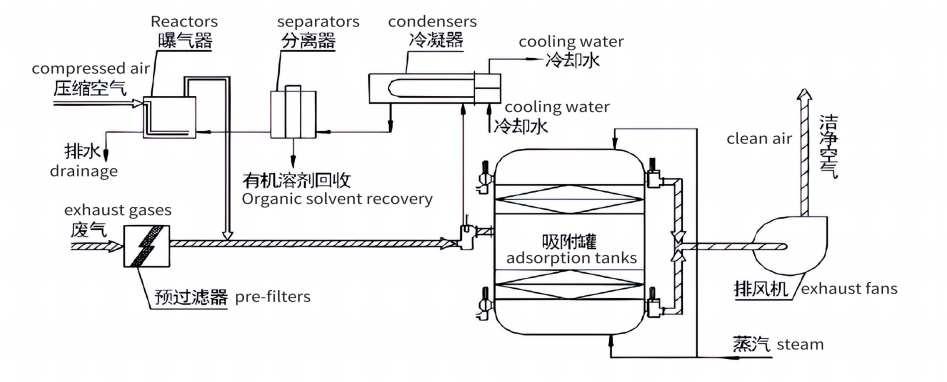

    Adsorption process: The waste gas passes through an ar filter to remove tiny suspended particles before entering the tank. The gas is then filtered through the activated carbon particles packed in the tank and emptied by the rear fan (if the gas concentration is high, a multi-stage adsorption device can be used to ensure that the gas meets emission standards).

    Desorption process: When activated carbon is saturated after a certain period of use, it needs to be regenerated. The desorption and regeneration process uses a heating and analysis method. High-temperature steam at 0.5 Mpa is injected from the bottom of the tower into the tank to detach organic substances from the activated carbon. The detached gas passes through a matching condense to cool down and enter the separation tank. The organic solvents are recovered during separation, while the remaining solution is aerated and discharged (if high-precision solvents need to be recovered, a distillation device can be added to the separation tank).

    Structural Features

    The equipment mainly consists of adsorption tanks, shut-off valves, filters, condensers, aerating tanks, steam pipelines, water supply and drainage pipelines, fans, and supporting pipelines. Low-pressure steam is used as the desorption medium. When necessary, a steam filter can be equipped to increase the steam temperature for the analysis of solvents with higher boiling points. The equipment has multiple safety measures, such as fan overload protection, carbon layer overheating protection, fire interlocking, and check valves. The energy consumption is low during normal use, only requiring the power of the exhaust fan.

    Equipment Selection

    Technical parameters and external dimensions of single-layer activated carbon.

    Series specification

    XF-l-1000

    XF-l-1800

    XF-l-3000

    XF-l-5000

    XF-l-7000

    XF-l-8000

    XF-l-10000

    Design treatment air volume (m³/h)

    1000

    1800

    3000

    5000

    7000

    8000

    10000

     Diameter of adsorption tank Dg (mm)

    f800

    ↓1000

    f11OO

    1600

    f1800

    f2000

    f2100

    Activated carbon filling capacity(kg/li tank)

    100

    200

    300

    380

    500

    750

    800

    Cooling water consumption of condenser (m³/h)

    2

    3

    5

    8

    12

    15

    16

    Compressed air pressure and consumption

    1kg/cm² little

    Same as left

    Same as left

    Same as left

    Same as left

    Same as left

    Same as left

    Fan model

    9-19,4A

    9-19,4.5A

    9.19,4.5A

    9-19,5A

    9-19,5.6A

    9-19,5.6A

    9-19,6.3A

    Motor model

    Y-2P2.2KW

    Y-2P4KW

    Y-2P5.5KW

    Y-2P15KW

    Y-2P22KW

    Y-2P30KW

    Y-2P45KW

    Desorption steam consumption kg/h (4kg/cm^2)

    30

    45

    75

    100

    130

    150

    180

    Dimension (mm)

    A



    3400

    4200

    5100

    6000

    5800

    7000

    B



    2900

    3100

    3400

    3920

    4500

    6000

    H



    100

    120

    140

    160

    160

    160

    Total weight of the device



    3.2T

    3.8T

    4.8T

    5.2T

    8.5T

    9.5T

    Technical parameters and external dimensions of double-layer activated carbon

    Series specification

    XF-ll-5000

    XF-ll-8000

    XF-ll-10000

    XF-ll-15000

    XF-ll-30000

    Design treatment air volume (Nm³/h)

    5000

    8000

    10000

    15000

    30000

    Diameter of adsorption tank D(mm)

    1500

    1800

    2000

    Separately determined

    Separately determined

    Outline dimensions

    A(mm)

    3800

    4500

    4900

    Separately determined

    Separately determined

    B(mm)

    3000

    3500

    3800

    Separately determined

    Separately determined

    C(mm)

    1000

    1100

    1100

    Separately determined

    Separately determined

    H(mm)

    4200

    4600

    5000

    Separately determined

    Separately determined

    Purification system

    Inlet Φmm

    400

    530

    560

    Separately determined

    Separately determined

    Outlet Φmm

    280

    380

    400

    Separately determined

    Separately determined

    Drying system

    Inlet Φmm

    280

    380

    400

    Separately determined

    Separately determined

    Outlet Φmm

    200

    280

    300

    Separately determined

    Separately determined

    Activated carbon filling capacity (single tank) kg

    Another decision

    Another decision

    Another decision

    Separately determined

    Separately determined

    Consumption of analysis steam (0.4MPa)kg/h

    350

    460

    550

    Separately determined

    Separately determined

    Cooling water consumption (tl=30°C,t2=36℃)³m/h

    22

    30

    35

    Separately determined

    Separately determined

    Compressed air (0.4MPa)

    Few

    Few

    Few

    Few

    Few

    Total power installed (steam superheater) KW

    Separately determine

    Separately determine

    Separately determine

    Separately determined

    Separately determined

    Purification efficiency

    ≥90%

    ≥90%

    ≥90%

    Separately determined

    Separately determined

    Weight of each set of equipment (T)

    7.5

    9.5

    12

    Separately determined

    Separately determined



Related Products

About Us
Lv quan Environmental Protection Engineering Technology Co., Ltd.

Yangzhou Lv Quan Environmental Protection Engineering Technology Co., Ltd. is strategically located in the "Northern Gateway of Jiangsu"—Gaoyou City, Yangzhou Province. Our company is a joint-stock enterprise established by a team of professionals with over 30 years of experience in the design and manufacturing of VOCs equipment. With a registered capital of 22 million yuan, we have nearly 40 million yuan in fixed assets and a total asset value approaching 60 million yuan. Our production facilities span an area of 9,800 square meters, equipped with over 200 sets of various mechanical processing equipment. We employ a dedicated workforce of 120 staff members, and our annual production capacity is valued at 100 million yuan.
We are a professional LQ-ACA Granular Activated Carbon Adsorption and Condensation Recovery System Manufacturers, The company has always focused on the environmental protection design and manufacturing of VOCs organic waste gas treatment such as "adsorption, incineration, recovery, pretreatment". It has been committed to the research, design, manufacturing, installation, and after-sales service of organic waste gas treatment equipment for more than a decade. The company has Jiangsu Province environmental pollution design and governance double-grade qualifications, Jiangsu high-tech enterprises, ecological protection professional third-level contracting qualifications, and has successfully passed the ISO9001, ISO14001 system certification.
As a professional LQ-ACA Granular Activated Carbon Adsorption and Condensation Recovery System Suppliers, Our company currently holds thirteen utility certificates and two high-tech invention certificates, and we have been designated as a member unit of the Jiangsu Environmental Protection Industry Association. Our product portfolio spans a wide range of industries, including vehicle manufacturing, coil coating, petrochemicals, pharmaceuticals, electronics, machinery, printing, and furniture-building materials. In the field of organic waste gas treatment equipment, the Lv Quan brand stands out and enjoys a rapidly growing market share.
Adhering to the principles of "focus, technology, quality, service, and satisfaction," Lv Quan has absorbed and integrated advanced foreign technologies in the manufacturing of adsorption and incineration technologies. We have summarized and enhanced the safety, stability, and reliability of our products, achieving a level of quality that is on par with domestic peers and gradually replacing the need for imported equipment.

Certificate Of Honor
  • New Small and Medium sized Enterprise Certificate
  • Account Opening License
  • High tech Enterprise Certificate
  • Safety Production License
  • Business License
  • Certificate
  • Certificate
  • Certificate
News
Industry Knowledge Extension

Yangzhou Lv Quan Environmental Protection Engineering Technology Co., Ltd., as a R&D and manufacturing enterprise of this product, has made outstanding achievements in the field of VOCs control with more than 30 years of technical accumulation and professional experience. The company has the dual-level qualification of environmental pollution design and treatment in Jiangsu Province and the high-tech enterprise certification, and has also passed the ISO9001 and ISO14001 system certification, demonstrating its strength in technology research and development and quality control. Yangzhou Lv Quan Environmental Protection Engineering Technology Co., Ltd. has thirteen utility model patents and two high-tech invention patents, which fully demonstrates its leading position in technological innovation. These patented technologies provide a solid technical guarantee for the efficient operation of the LQ-ACA Granular Activated Carbon Adsorption and Condensation Recovery System, and make it stand out in the market and win wide customer recognition.
LQ-ACA Granular Activated Carbon Adsorption and Condensation Recovery System is an efficient and economical VOCs (volatile organic compounds) waste gas treatment equipment, which is widely used in chemical, light industry, printing, rubber, furniture, electromechanical, shipbuilding, automobile, petroleum and other industries. The system uses advanced granular activated carbon adsorption technology, combined with condensation recovery technology, which can effectively absorb and recover solvent components in organic waste gases such as benzene, alcohol, ketone, ether, phenol, gasoline, etc., to achieve waste gas purification and resource recycling.
The core advantage of the LQ-ACA Granular Activated Carbon Adsorption and Condensation Recovery System lies in its efficient adsorption capacity and condensation recovery efficiency. Granular activated carbon has a large specific surface area and excellent adsorption performance. It can quickly adsorb organic pollutants in waste gas, and release the adsorbed solvent by steam heating or water vapor desorption, and then cool it into liquid solvent for recovery through the condenser. This process significantly reduces production costs and maximizes environmental benefits. Some cases show that the solvent recovery rate of the system can reach more than 90%, and the VOCs removal rate is as high as more than 95%. At the same time, it has low energy consumption and stable and reliable operation.
The LQ-ACA Granular Activated Carbon Adsorption and Condensation Recovery System is particularly suitable for the treatment of large air volume, medium and high concentration, and low temperature organic gas. Its design is flexible and can be modularly adjusted according to different working conditions to meet the special requirements of various industries for waste gas treatment. In the automotive manufacturing, coil coating, petrochemical and other industries, the system can effectively deal with the emission of high-concentration organic waste gas and reduce pollution to the environment by optimizing the adsorbent regeneration process and condensation recovery process.
The LQ-ACA Granular Activated Carbon Adsorption and Condensation Recovery System has efficient waste gas treatment capabilities and can also reuse resources through condensation recovery, saving costs and improving economic benefits for enterprises. Yangzhou Lv Quan Environmental Protection Engineering Technology Co., Ltd. relies on its strong technical R&D capabilities and rich industry experience to provide customers with comprehensive solutions to ensure long-term and stable operation of equipment. This system is an innovative product in the field of industrial waste gas treatment and is worthy of the trust and choice of users in various industries.
